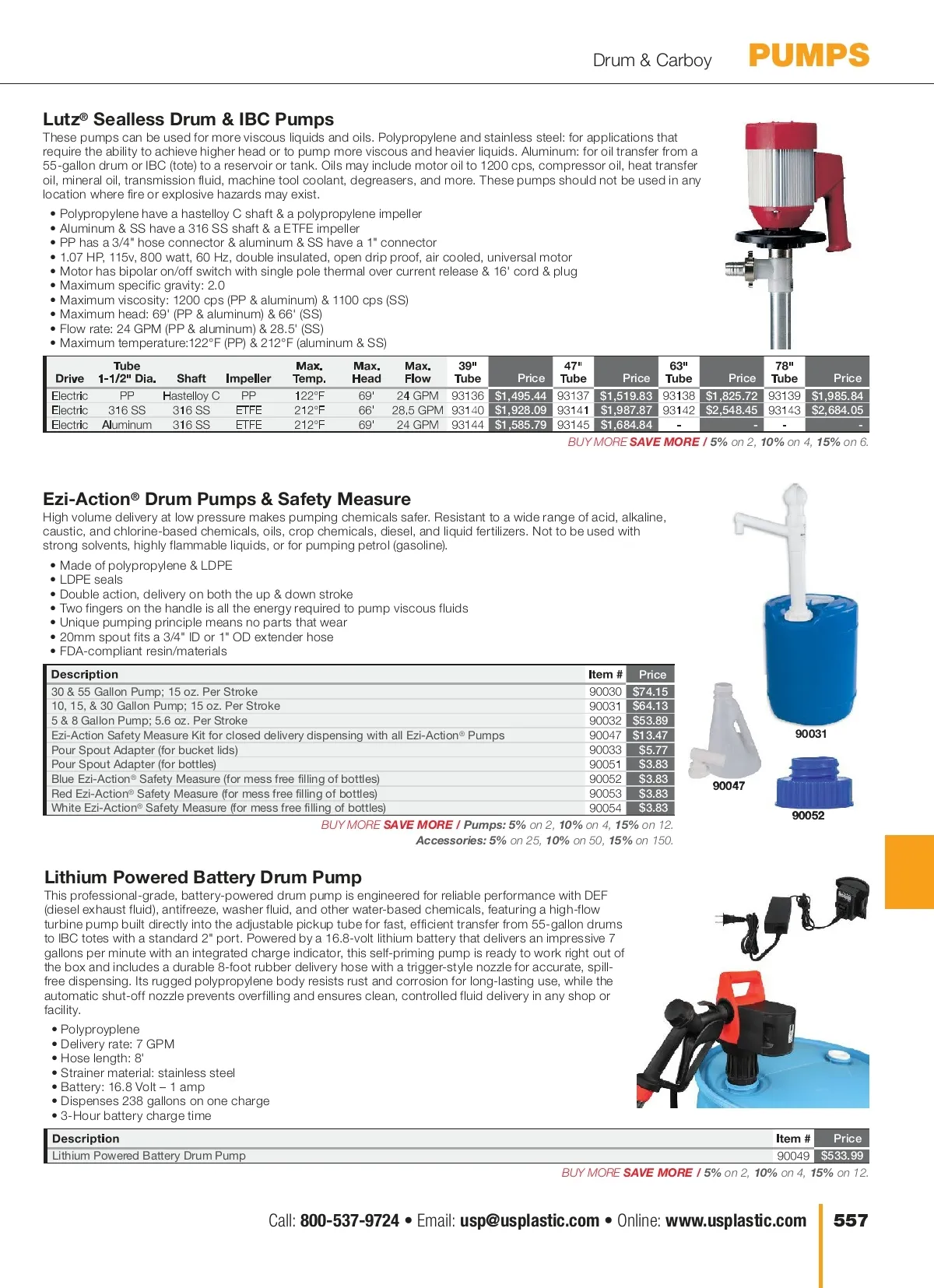

Drum & Carboy Lutz ® Sealless Drum & IBC Pumps These pumps can be used for more viscous liquids and oils. Polypropylene and stainless steel: for applications that require the ability to achieve higher head or to pump more viscous and heavier liquids. Aluminum: for oil transfer from a 55-gallon drum or IBC (tote) to a reservoir or tank. Oils may include motor oil to 1200 cps, compressor oil, heat transfer oil, mineral oil, transmission fluid, machine tool coolant, degreasers, and more. These pumps should not be used in any location where fire or explosive hazards may exist. • Polypropylene have a hastelloy C shaft & a polypropylene impeller • Aluminum & SS have a 316 SS shaft & a ETFE impeller • PP has a 3/4" hose connector & aluminum & SS have a 1" connector • 1.07 HP, 115v, 800 watt, 60 Hz, double insulated, open drip proof, air cooled, universal motor • Motor has bipolar on/off switch with single pole thermal over current release & 16' cord & plug • Maximum specific gravity: 2.0 • Maximum viscosity: 1200 cps (PP & aluminum) & 1100 cps (SS) • Maximum head: 69' (PP & aluminum) & 66' (SS) • Flow rate: 24 GPM (PP & aluminum) & 28.5' (SS) • Maximum temperature:122°F (PP) & 212°F (aluminum & SS) Price $1,495.44 $1,928.09 $1,585.79 PUMPS Price Price Price $1,519.83 $1,825.72 $1,985.84 $1,987.87 $2,548.45 $2,684.05 $1,684.84 ----BUY MORE SAVE MORE / 5% on 2, 10% on 4, 15% on 6. Ezi-Action ® Drum Pumps & Safety Measure High volume delivery at low pressure makes pumping chemicals safer. Resistant to a wide range of acid, alkaline, caustic, and chlorine-based chemicals, oils, crop chemicals, diesel, and liquid fertilizers. Not to be used with strong solvents, highly flammable liquids, or for pumping petrol (gasoline). • Made of polypropylene & LDPE • LDPE seals • Double action, delivery on both the up & down stroke • Two fingers on the handle is all the energy required to pump viscous fluids • Unique pumping principle means no parts that wear • 20mm spout fits a 3/4" ID or 1" OD extender hose • FDA-compliant resin/materials Price 30 & 55 Gallon Pump; 15 oz. Per Stroke $74.15 10, 15, & 30 Gallon Pump; 15 oz. Per Stroke $64.13 5 & 8 Gallon Pump; 5.6 oz. Per Stroke $53.89 ® Ezi-Action Safety Measure Kit for closed delivery dispensing with all Ezi-Action Pumps $13.47 Pour Spout Adapter (for bucket lids) $5.77 Pour Spout Adapter (for bottles) $3.83 ® Blue Ezi-Action Safety Measure (for mess free filling of bottles) $3.83 Red Ezi-Action ® Safety Measure (for mess free filling of bottles) $3.83 White Ezi-Action ® Safety Measure (for mess free filling of bottles) $3.83 BUY MORE SAVE MORE / Pumps: 5% on 2, 10% on 4, 15% on 12. Accessories: 5% on 25, 10% on 50, 15% on 150. 90031 90047 90052 Lithium Powered Battery Drum Pump This professional-grade, battery-powered drum pump is engineered for reliable performance with DEF (diesel exhaust fluid), antifreeze, washer fluid, and other water-based chemicals, featuring a high-flow turbine pump built directly into the adjustable pickup tube for fast, efficient transfer from 55-gallon drums to IBC totes with a standard 2" port. Powered by a 16.8-volt lithium battery that delivers an impressive 7 gallons per minute with an integrated charge indicator, this self-priming pump is ready to work right out of the box and includes a durable 8-foot rubber delivery hose with a trigger-style nozzle for accurate, spill-free dispensing. Its rugged polypropylene body resists rust and corrosion for long-lasting use, while the automatic shut-off nozzle prevents overfilling and ensures clean, controlled fluid delivery in any shop or facility. • Polyproyplene • Delivery rate: 7 GPM • Hose length: 8' • Strainer material: stainless steel • Battery: 16.8 Volt – 1 amp • Dispenses 238 gallons on one charge • 3-Hour battery charge time Lithium Powered Battery Drum Pump Price $533.99 BUY MORE SAVE MORE / 5% on 2, 10% on 4, 15% on 12. Call: 800-537-9724 • Email: usp@usplastic.com • Online: www.usplastic.com 557
U.S. Plastic Corp. 2026 Volume 1: Page 557
